Name: EZG Hog Legs
SKU: 99411

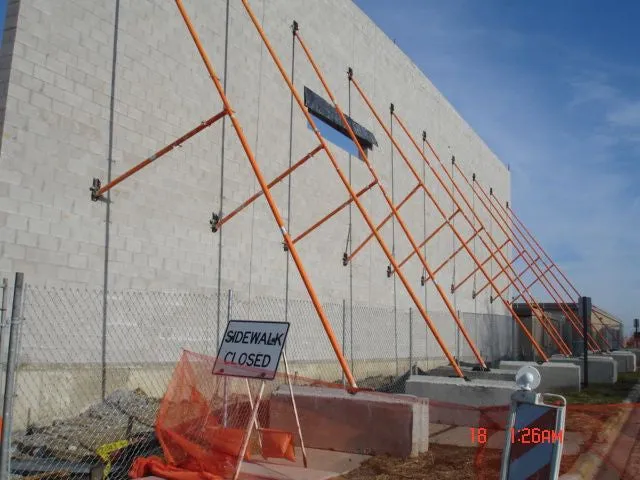

Safely securing new masonry projects, especially high walls, is tantamount to safe and solid construction. Hog Legs® wall braces are lightweight, adjustable poles which easily anchor into your footings and helps keep setting block in place.

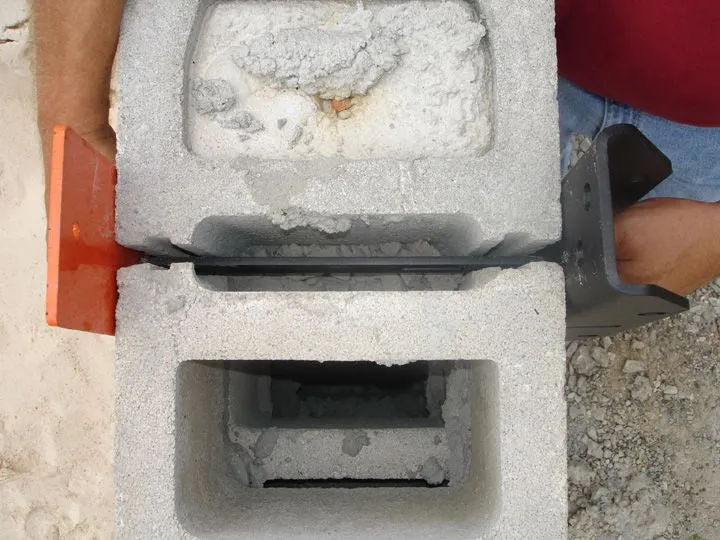

Each wall brace fastens through the head joints, which means no block cutting or anchor bolts are required. The standard kit covers jobs up to 400 linear feet.

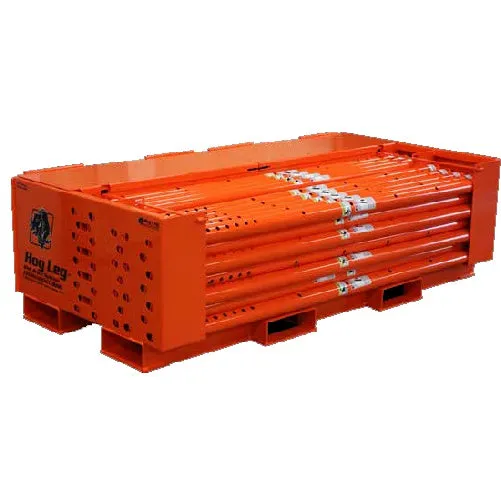

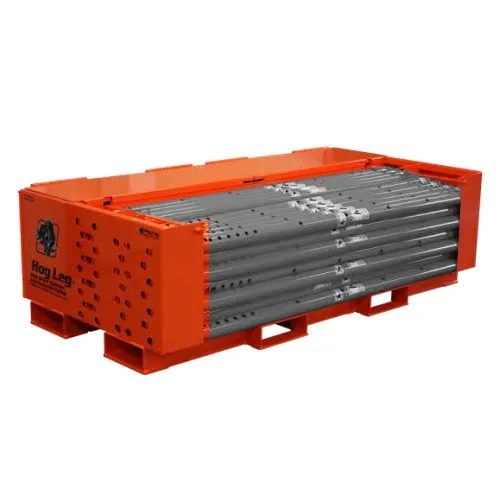

The Hog Legs are effective with any type of masonry block. Every brace system comes with a lockable, 8' storage rack that makes your Hog Legs brace system easy to store.

Specifications

Kit weight 3790 lbs. (1719 kg)
Galvanized or powder coated finish for durability
Overall kit dimensions - 89" × 43" × 26"

Accessories

Hog Leg Kicker Pipe Assembly - 2 7/8"OD (HL-503)
Hog Leg Kicker Pipe Assembly - 2 3/8"OD (HL-504)
Hog Leg Brace Screw Adjustment Assembly - Bottom (HL-A-1)
Hog Leg Brace Swivel Assembly (HL-A-2)

Range of Brace Length	# of 7’ Hog Leg extensions used	# of 14’ Hog Leg extensions	# of Braces	Linear Ft. of Wall
HL400 Hog Leg Brace Kit Only
7’-2” to 12’-8”	2	N/A	32	400 ft.
13’-6” to 18”-9”	3	N/A	21	250 ft.
14’-0” to 24-9”	4	N/A	16	200 ft.
19’-6” to 30’-10”	5	N/A	12	150 ft.
HL400 Hog Leg Kit and (1) HL14 Ext. Kit
14’-11” to 20’-8”	1	1	32	400 ft.
15’-5” to 26’-9”	2	1	32	400 ft.
HL400 Hog Leg Kit and (2) HL14 Ext. Kit
21’-4” to 33’-8”	1	2	32	400 ft.
29’-4” to 39’-9”	2	2	32	400 ft.
